MRXBOX Standard MVHR System
MRXBOXAB-ECO3B Wall Mounted MVHR
Product Features
-
High Efficiency
Heat exchanger is up to 95% efficient resulting in low SPFs and a high SAP score
-
Healthy Living Environment
Improves indoor air quality and prevents condensation by keep moisture levels low
-
Lightweight and Compact Design
Can be mounted on a wall or in a cupboard, reducing overall noise levels and making less obtrusive for occupants
-
Low Maintenance Costs
Easy accessible filters from front cover and no tools required
-
Building Regulations
PCDB recognised and meets Part F & L of Building Regulations
Technical Information
Due to its intelligent and smart design, there will be no reduction in airflow when operating in bypass mode resulting in balanced performance. The MRXBOXAB-ECO3B is designed to provide optimised balanced (supply and extract) mechanical ventilation with heat recovery and both are listed on the PCDB.

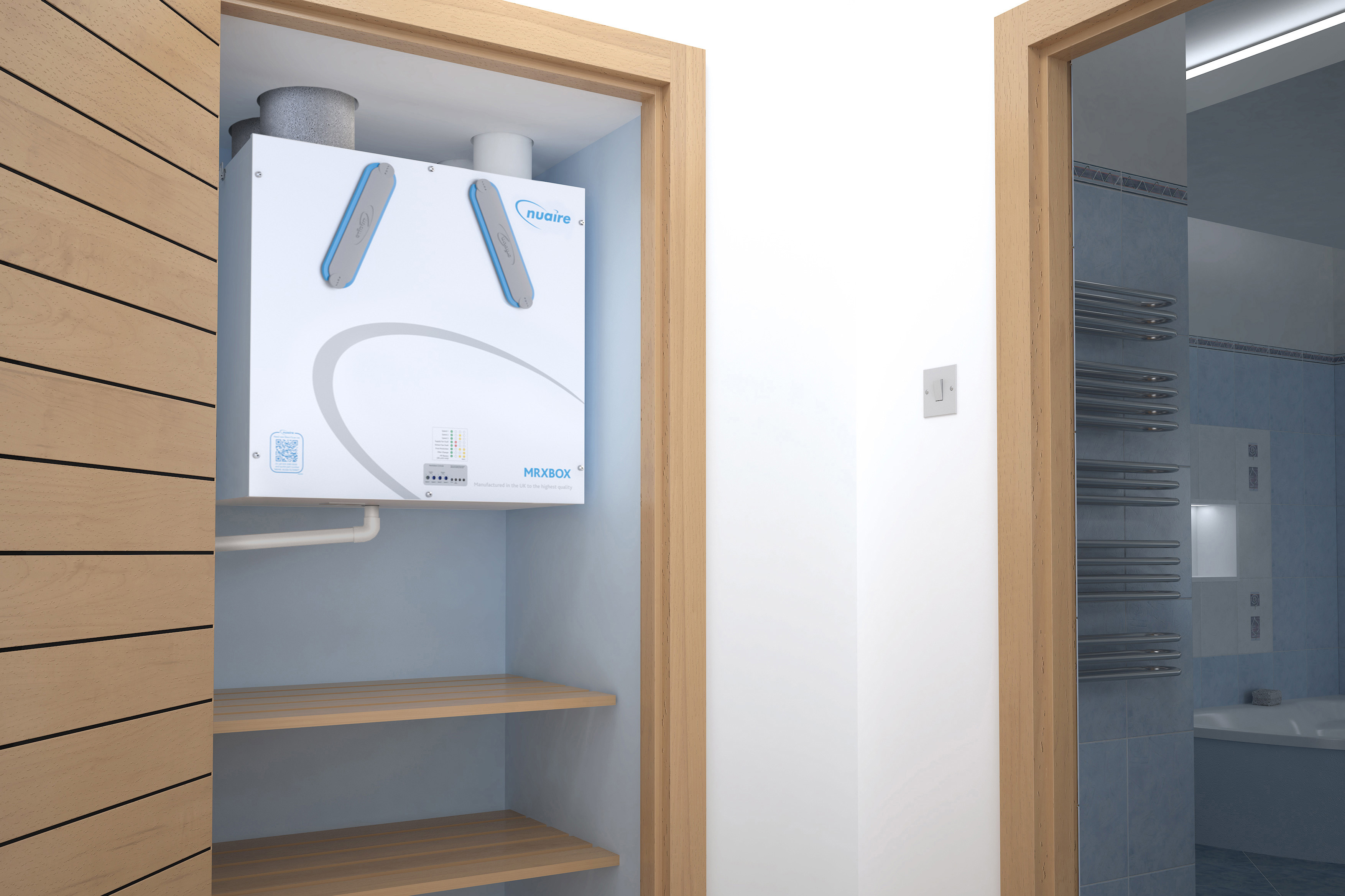

The unit is compact enough to go into a cupboard space, as well as being powerful enough to ventilate kitchen and up to 6 wet rooms.
Additional Information
- Opposite handed configuration available.
- Summer/Winter Switch (optional)- A two-position switch allowing occupant to have direct control of heat exchanger bypass.
- Automatic Bypass - In warmer months this function automatically activates to ensure the property is being well-ventilated and comfort levels are maintained in the home by continuously drawing in fresh filtered air into the habitable rooms.
The unit comes with 2 year warranty (including parts and labour).

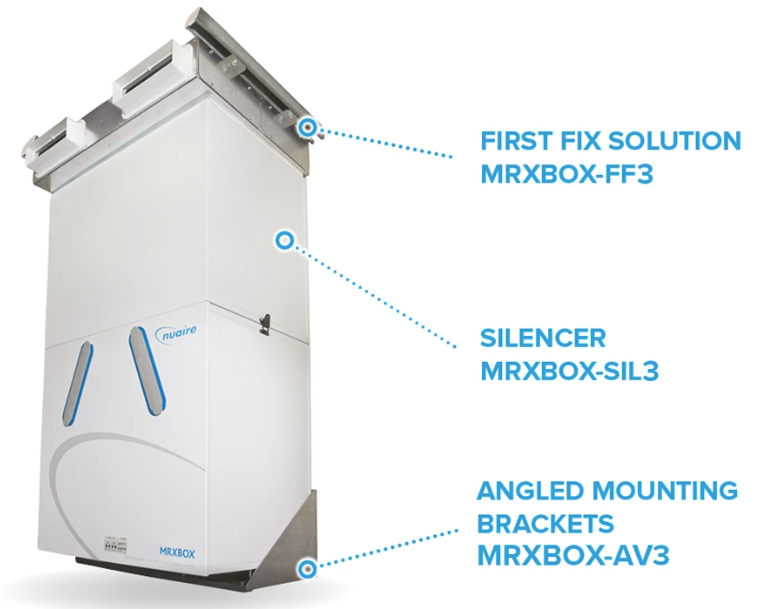

First Fix and Acoustic Solution
Nuaire’s First Fix and Acoustic Solution is designed to not only reduce noise but to improve the installation when wall or cupboard mounting the MRXBOXAB-ECO3B
- First Fix Solutions MRXBOX-FF3
- Nuaire’s First Fix box is fixed to the underside of the floor slab at first fix stage of the build. The box has four airflow chambers with optional positions for 204x60mm spigots. Ceilings can then be boarded within the cupboard space easily and quickly without the risk of the spigots not aligning to the fan unit.
- SILENCER MRXBOX-SIL3
- Nuaire has created a unique solution that is not only designed to reduce noise significantly, addressing duct and breakout noise, but is visibly appealing for the home occupant. It can be used with or without the First Fix Solution.
- Angled Mounting Brackets MRXBOX-AV3
- Anti-vibration installation kit
