MRXBOX Acoustic Enclosure Range

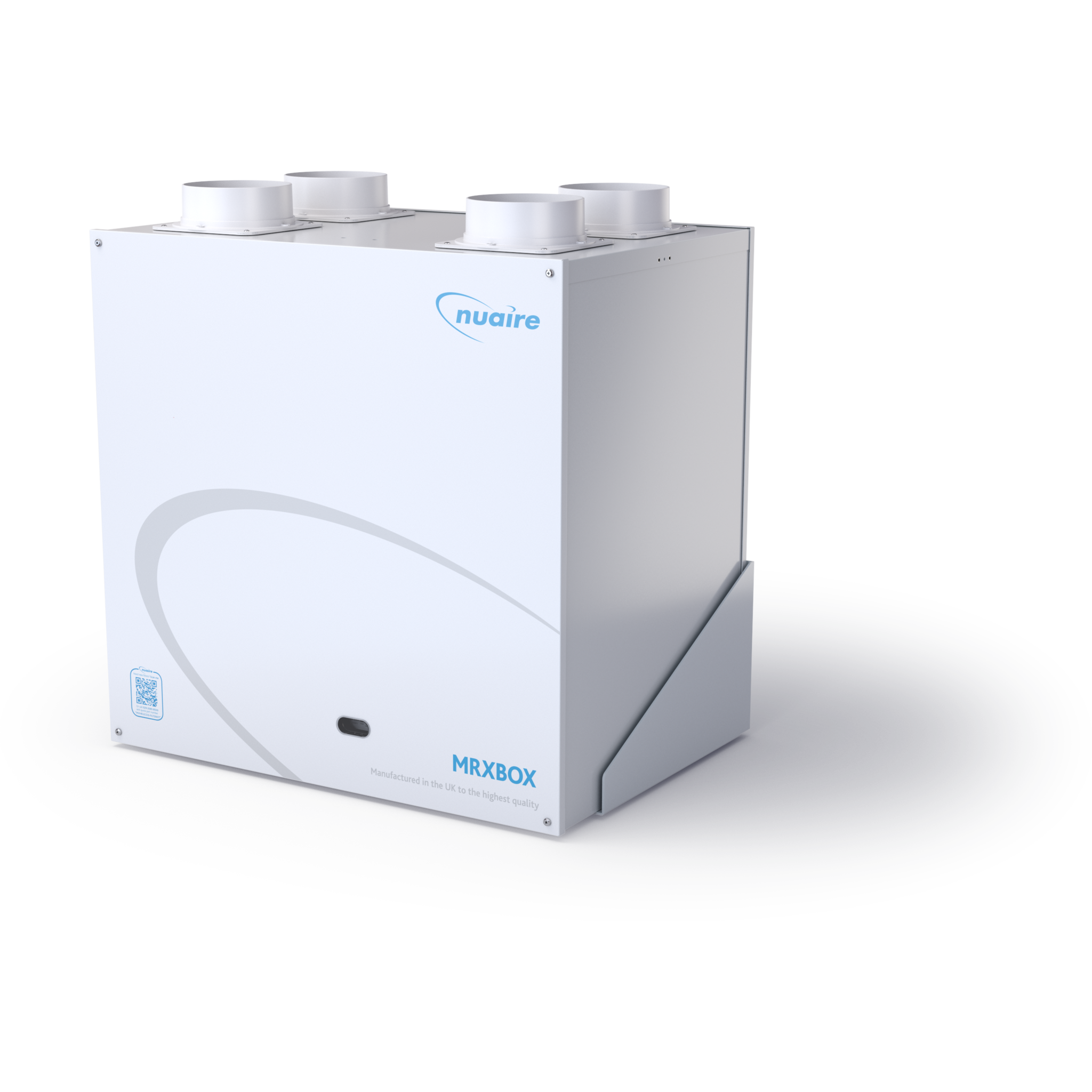

MRXBOXAB-ECO5 Wall Mounted Acoustic Enclosure
Product Features
-
High Efficiency
Heat exchanger is up to 95% efficient resulting in low SPFs and a high SAP score
-
Healthy Living Environment
Protects homeowners living in urban areas from harmful air pollution
-
Building Regulations
PCDB recognised and meets Part F & L of Building Regulations
-
Lightweight and Compact Design
Can be mounted on a wall or in a cupboard, reducing overall noise levels and making less obtrusive for occupants
-
Low Maintenance Costs
Easy accessible filters from front cover and no tools required
Technical Information
This unit incorporates an acoustic surrounding to your MVHR unit and flexible duct connectors within an enclosure and supporting the internals on anti-vibration mounts significantly decreasing noise and vibration output.
Tempered air is delivered into ‘living areas’ whilst extracting moisture laden air from ‘wet’ areas, creating comfortable and well-ventilated homes. The unit has the facility to commission the supply and extract fans independently on both minimum and maximum speeds, and the heat exchange block can recover up to 95% of the normally wasted heat that has been extracted from the ‘wet rooms'.
Additional Information
- Opposite handed configuration available.
- Summer/Winter Switch (optional)- A two-position switch allowing occupant to have direct control of heat exchanger bypass.
- Automatic Bypass - In warmer months this function automatically activates to ensure the property is being well-ventilated and comfort levels are maintained in the home by continuously drawing in fresh filtered air into the habitable rooms.
The unit comes with 2 year warranty (including parts and labour).
