XBOXER Hybrid

Designed for classroom spaces, XBOXER Hybrid uses pure natural ventilation with mechanical assistance - achieving the best of both worlds.

View Sketchfab Downloads
View BIM Files

Designed for classroom spaces, XBOXER Hybrid utilities all the benefits of a natural system, together with the reassurance of our market-leading mechanical expertise. This aids in achieving higher flow rates in hotter weather and tempered recirculation in colder weather.

Part of the XBOXER family, our Hybrid range leans on award-winning mechanical ventilation design paired with industry-leading natural ventilation techniques, resulting in the best unit of its class. Latest EC motor technology ensures lower SFPs, meaning a greener and much more energy-efficient offering.

For a better hybrid ventilation solution, choose Nuaire.

Separate Discharge

Separate Discharge Path

For guaranteed ventilation in recirculation mode

Robust

Robust Aluzinc Construction

Provides long life and helps minimise on site installation damage

EC Technology

Latest EC Technology

Maximum efficiency and guaranteed low SFPs

Quick

Quick-Fix Ceiling Bracket

Can be installed at 1st-fix stage and suitable for slab or drop-rod installation

XBOXER Hybrid - Ducted Installation

Ducted Installation

For projects which have a ceiling void and require units to be hidden out of sight, a ducting kit is available.

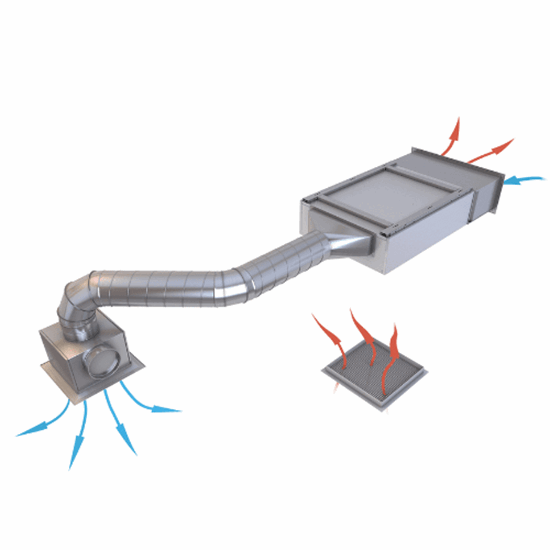

A typical ducted XBOXER Hybrid system will allow the unit to be concealed in the ceiling void and ducted into the room. A louvre connected to a plenum box supplies fresh air into the space, whilst air is extracted naturally through a grille in the ceiling.

XBOXER Hybrid 130 - Retrofit LPHW

LPHW Heating

If cold draughts become an issue in the classroom, Nuaire offers a retrofit LPHW module to temper or heat incoming air. Both tempered and primary heating options are available, making XBOXER Hybrid with LPHW a complete heating solution for hybrid ventilation projects

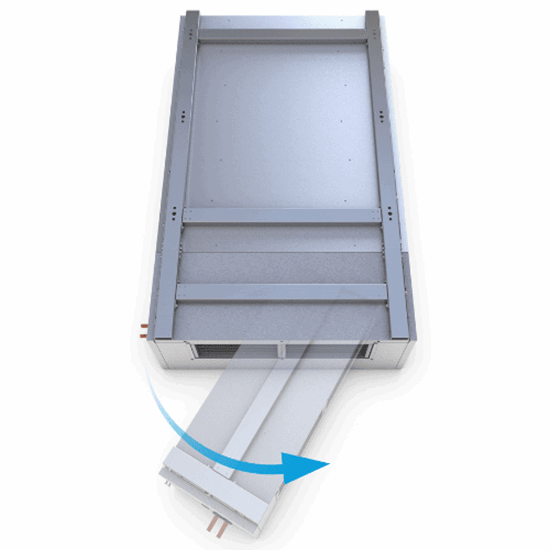

Hybrid LPHW coils are not handed and can be flipped to have bare tails on either site, ensuring complete design and install flexibility.
